Using methods:

1. Power on the gauge, the last test result is displayed. Press the 'ON' button for unit conversion (PSI - BAR - KPA - Kg/cm2). The simultaneous test of unit transformation shows that the value is changed accordingly.

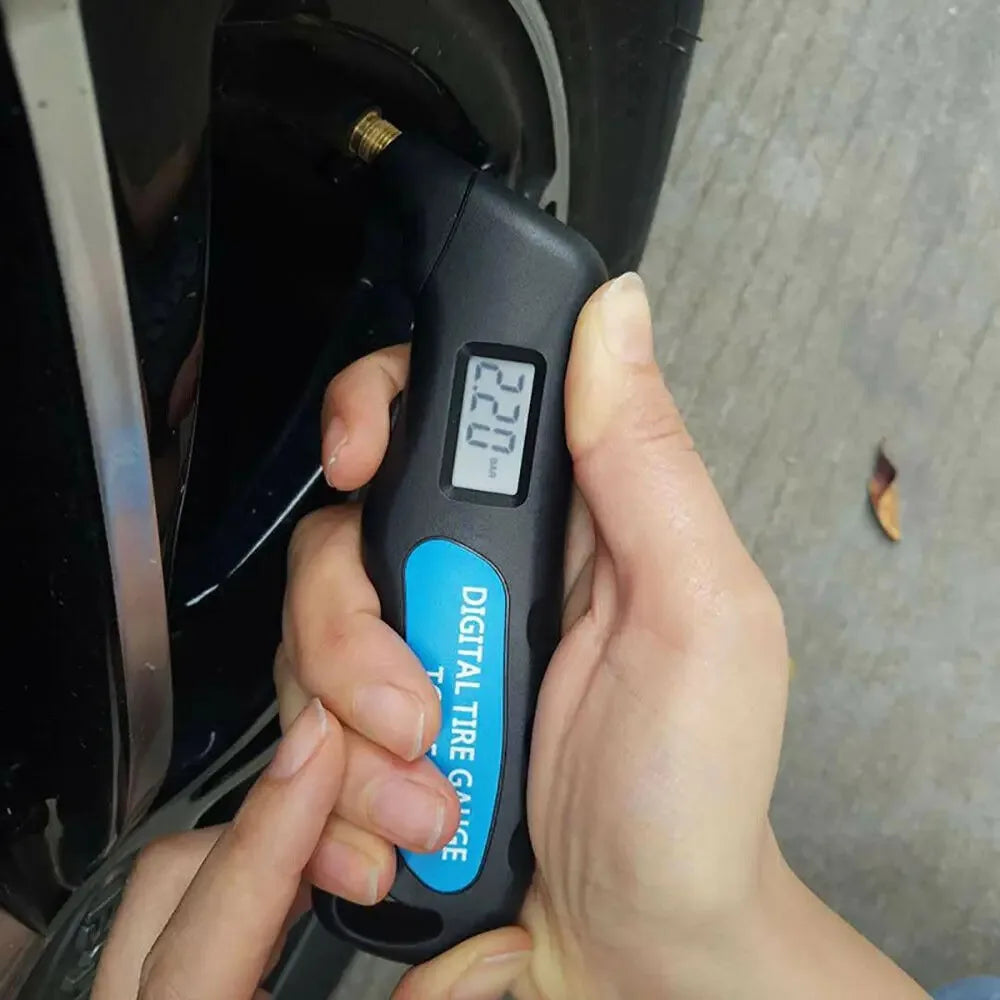

2. The nozzles of the pressure gauge are aligned with the tire valve and tight pressure to ensure that the nozzle and valve are in good touch,and there is no hissing sound. After 3 seconds, remove the gauge from the valve and the accurate tire pressure is read, and the data is kept for 15 seconds. After the data is zero, move the pressure gauge to the other tires to continue to test.
3.If gauge is not operated for 60 seconds, it will power off automatically. Or press ON key for 3 seconds to turn off the gauge.

Specifications:

Note:this product not include the batteries

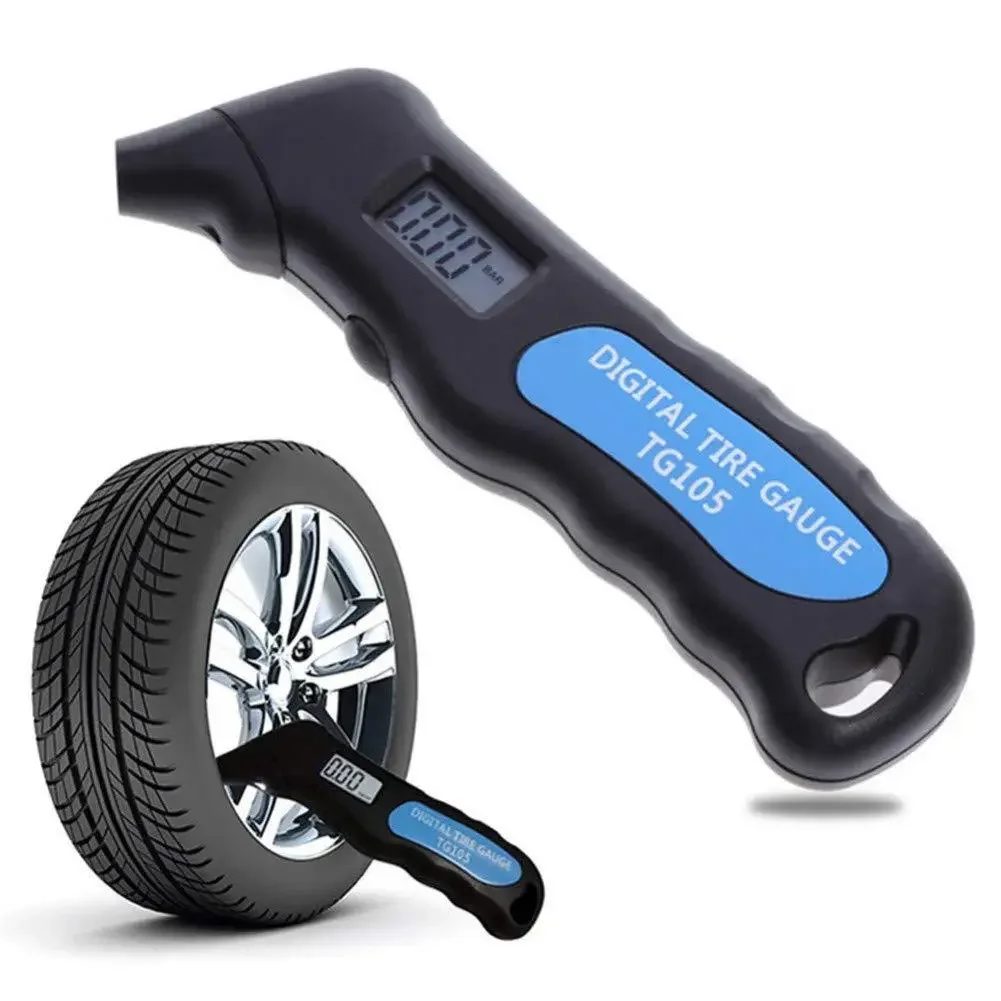

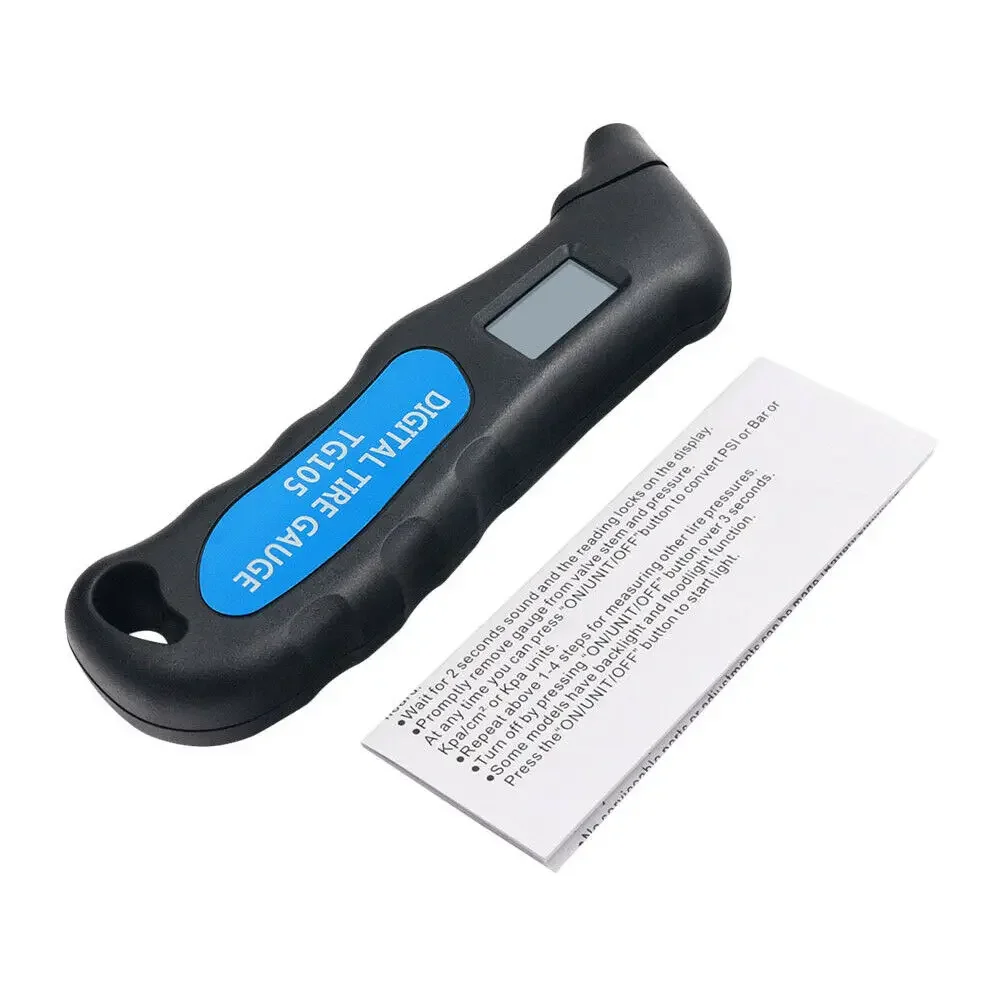

Model Number: TG105
Dial Diameter: 1.9 Inches & Under
Display Type: Digital
Backlight:None
Test range: 2.0-99.5 PSI OR 0.15-7.00 BAR
Accuracy: +/-1.5PSI
Resolution: 0.5PSI
Units: PSI, BAR, KPA, Kg/cm2
Power supply: 3×LR44 battery ( not included)

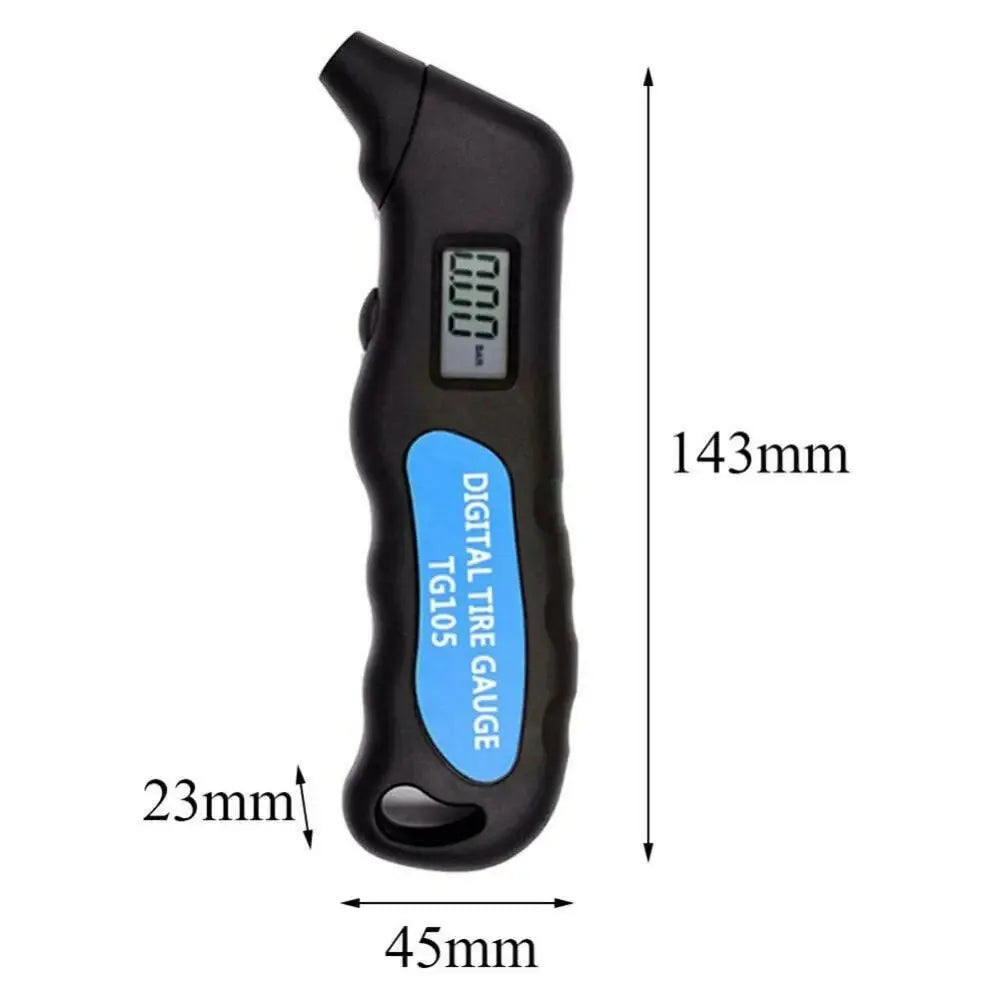

Product size: Approx.143*45*23mm

Features:
1. Test tire pressure value quickly.
2. LCD display, easy to read.
3. Automatically save current data for later reading

Package included:

1*GUAGE
