SPECIFICATIONS

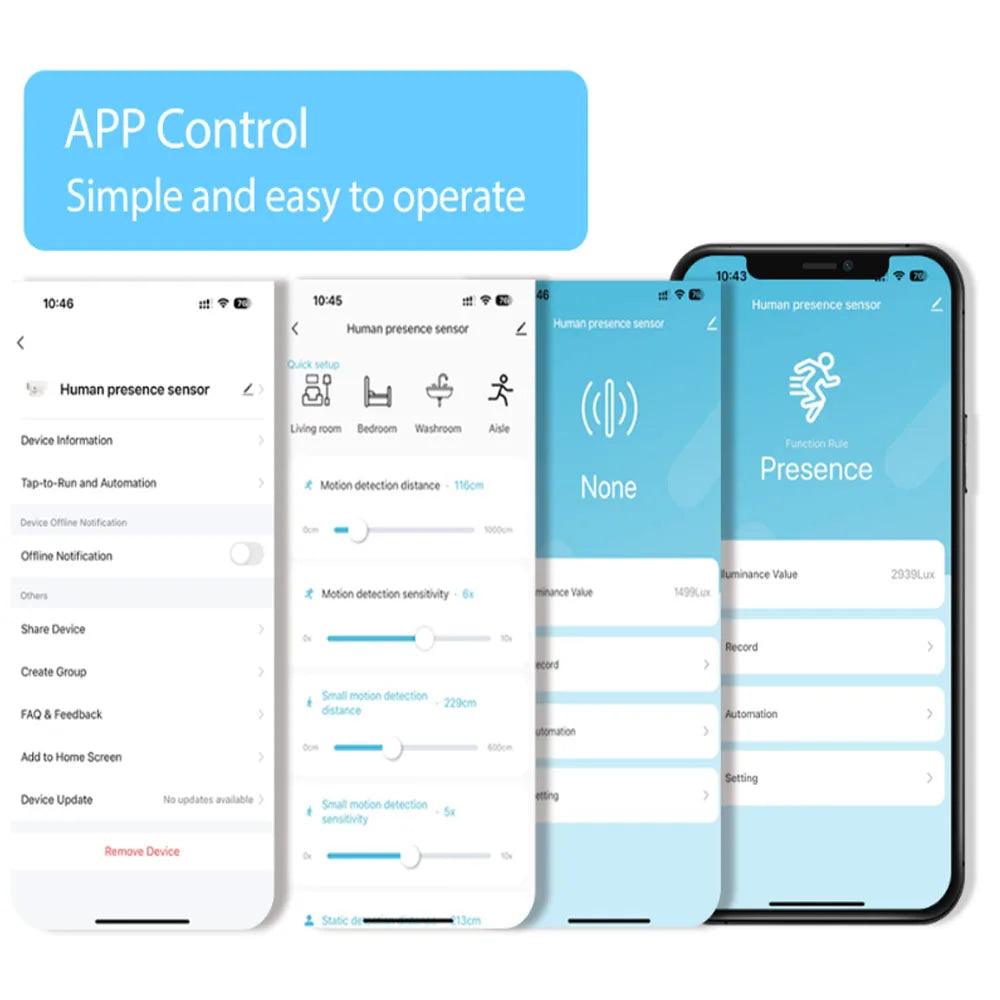

APP: Tuya / Smart life

Brand Name: NONE

Certification: CE,FCC,RoHS

Choice: yes

Detection Angle: 120

Detection Range: 1-10M

High-concerned chemical: none

Installation mode: wall,roof

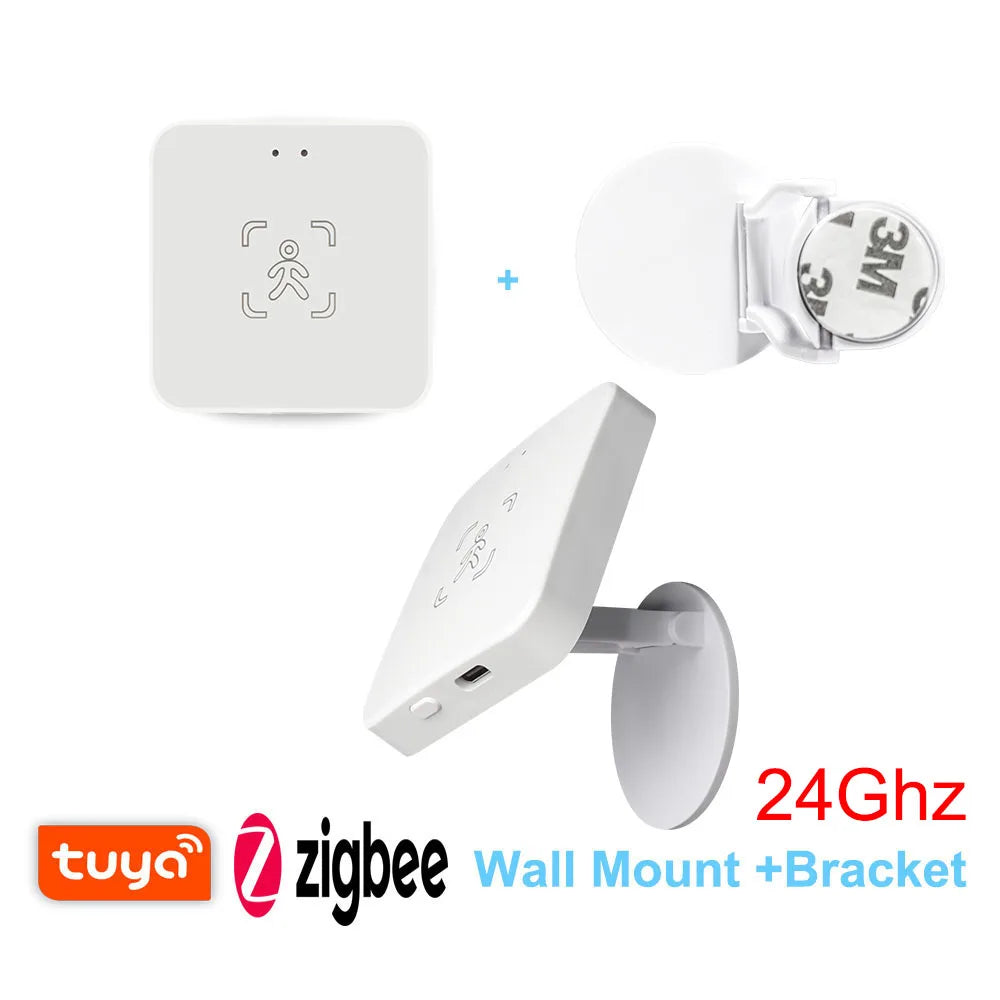

Model Number: Human Presence Sensor

Origin: Mainland China

Transmission Frequency: 24Ghz

Wireless technology: Zigbee/ WiFi

Support Home assistant zigbee 2mqtt,And Sensor work with tuya zigbee gateway.

Upgraded version Mmwave Radar, radar for more accurate detection.

Draadloos protocol: Zigbee / Wi-Fi (Facultatief)

Support detection movement detection,static detection(breathing,minor movement)Implement more automation scenarios.

Stationair detectiebereik: 0 ~ 600cm

Bewegend detectiebereik: 0 ~ 1000cm

1:Two Version for you to choose:

   (1)Wifi version doesn't need zigbee hub to operate.



   (2) zigbee version support Home Assistant zigbee 2mqtt. Need work with zigbee gateway.

2:What is difference between 5.8G and 24G?



  5.8G radar has a shorter detection distance (which basically meets the distance        requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.
